Acorn 130 Stairlift - designed for straight staircases

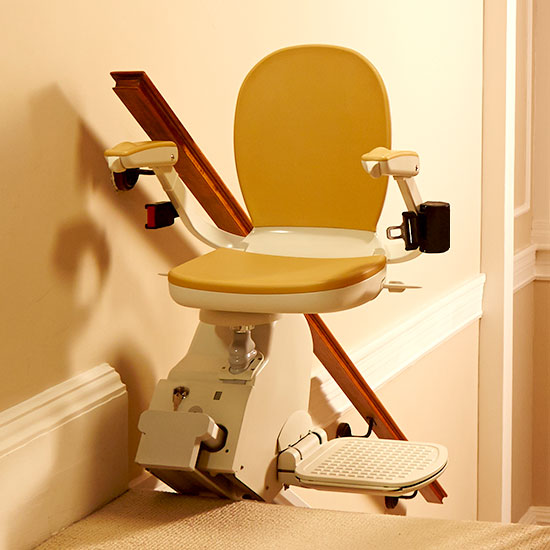

The Acorn 130 Stairlift

The new & improved version of the original Acorn Stairlift.

The Acorn 130 Straight Stairlift is an economical option specifically built specifically for straight staircases.

The Acorn 130 is the perfect choice for anyone with a 2-story home with a straight staircase or a single story home with a basement. The smooth start and stop feature, ensures a safe and comfortable ride.

Call us for your FREE consultation and quote. Our friendly and experienced Solution Specialists will provide all the information you need.  Call 877-551-2010

Photo Gallery

Overview

Safety Features

Demonstration Video

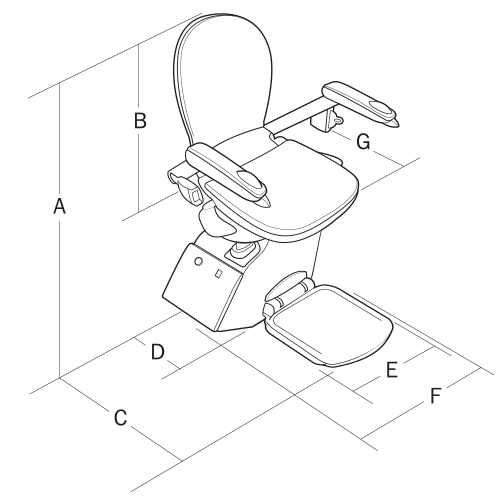

Acorn 130 Stairlift Dimensions
Dimensions inch
A Overall height 38.5
B Height of Seat 17.25
C Overall depth (from wall) 22.5
D Overall depth (when folded) 12.25
E Width of footrest 12.25
F Overall width 23.25
G Depth of seat 16

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
  • ISO 9386:2-2000 International standard for stairlifts.
Specifications
Motor output speed 4.8 inches per second - No greater than 5.9 inches per second
Method of drive Rack & pinion
Power supply 24V DC (battery)
Maximum capacity 300lbs (optional 350lbs)
Track Extruded aluminium
Main supply 50-60Hz, 100-240V AC

Optional Extras

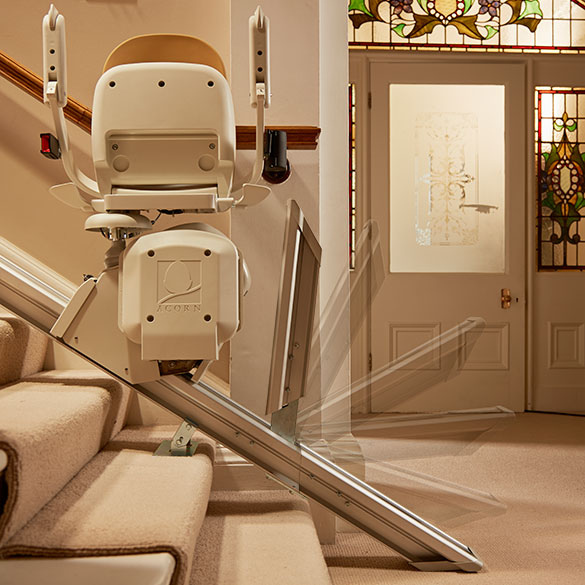

Acorn 130 Straight Hinge Demonstration


ACORN CURVE STAIR LIFTS
Acorn 180 Stairlift - designed for curved staircases

The Acorn 180 Stairlift

The Acorn 180 Stairlift is the most innovative stairlift in the world. A true technological breakthrough.

The Acorn 180 Stairlift can be installed on virtually any staircase, including curves, multiple landings, and more. Each Acorn 180 Stairlift is designed and installed to your precise requirements.

Want the stairlift to take you down the hall to your bedroom? The Acorn 180 can do that. Want it to take you into your living room? It can do that too.

  • FastTrack® easy, next day installation*
  • Requires no structural changes to your home
  • Affordable and reliable
  • Buy direct from the manufacturer
  • 12-month warranty

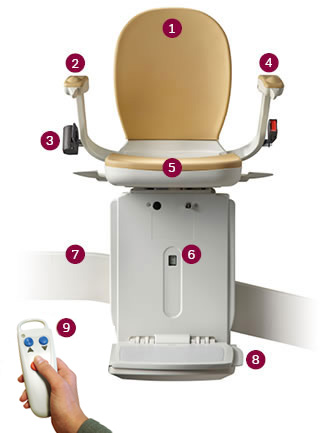

Acorn 180 Stairlift Features

A wealth of features for your benefit

  1. Padded seat and backrest for maximum comfort.
  2. Can be operated with the lightest of touches. Perfect for those with limited dexterity.
  3. A safety belt is installed on all of our stairlifts, so you feel secure at all times.
  4. Our slim fold away design has folding arms, seat and footrest, so other people can continue to use the stairs.
  5. A lockable swivel seat means you can get on and off your stairlift without twisting your body.
  6. Our modular rail system is secured directly to the stairs, not to the wall. So there's no structural damage to your home.
  7. Modular rail allows the rail portion of the lift to be quickly assembled from stock components, enabling faster delivery and an installation time to suit you.
  8. Safety sensors on the footrest and carriage stop the stairlift automatically if any obstruction is encountered.
  9. Hand-held remote controls allow users to call or send the lift up and down the staircase. Perfect for sharing with a loved one.

Photo Gallery

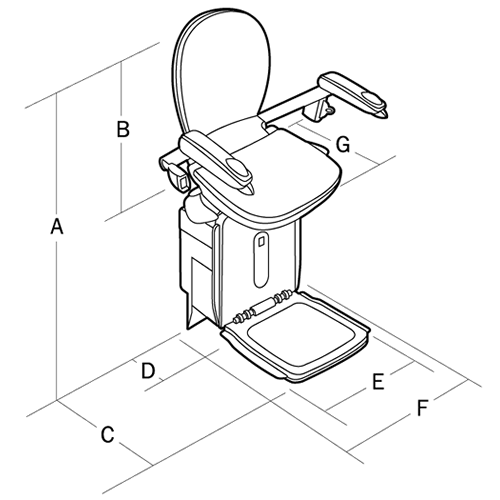

Acorn 180 Stairlift Dimensions
Dimensions inch
A Overall height 38.25
B Height of Seat 17.25
C Overall depth (from wall) 25.25
D Overall depth (when folded) 13.25
E Width of footrest 14.75
F Overall width 24.5
G Depth of seat 16

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
Specifications
Motor output speed 4.8 inches per second - No greater than 5.9 inches per second
Method of drive Rack & pinion
Power supply 24V DC (battery)
Maximum capacity 266lbs
Track Modular rail, extruded aluminium
Main supply 50-60Hz, 100-240V AC

Optional Extras

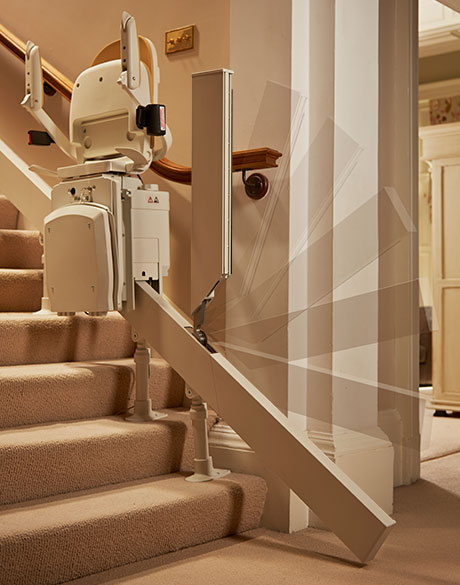

Acorn 180 Curved Hinge Demonstration

Automatic Powered Hinge

If there is a doorway near the foot of the stairs the optional automatic powered hinged rail is ideal.

The lower section of the rail folds up and out of the way automatically as the stairlift travels up and down the staircase, allowing greater access at the foot of the stairs. The powered hinge raises and lowers automatically as the stairlift travels up and down the staircase.

When the stairlift is not is use, the rail is neatly out of the way and causes no obstruction.
